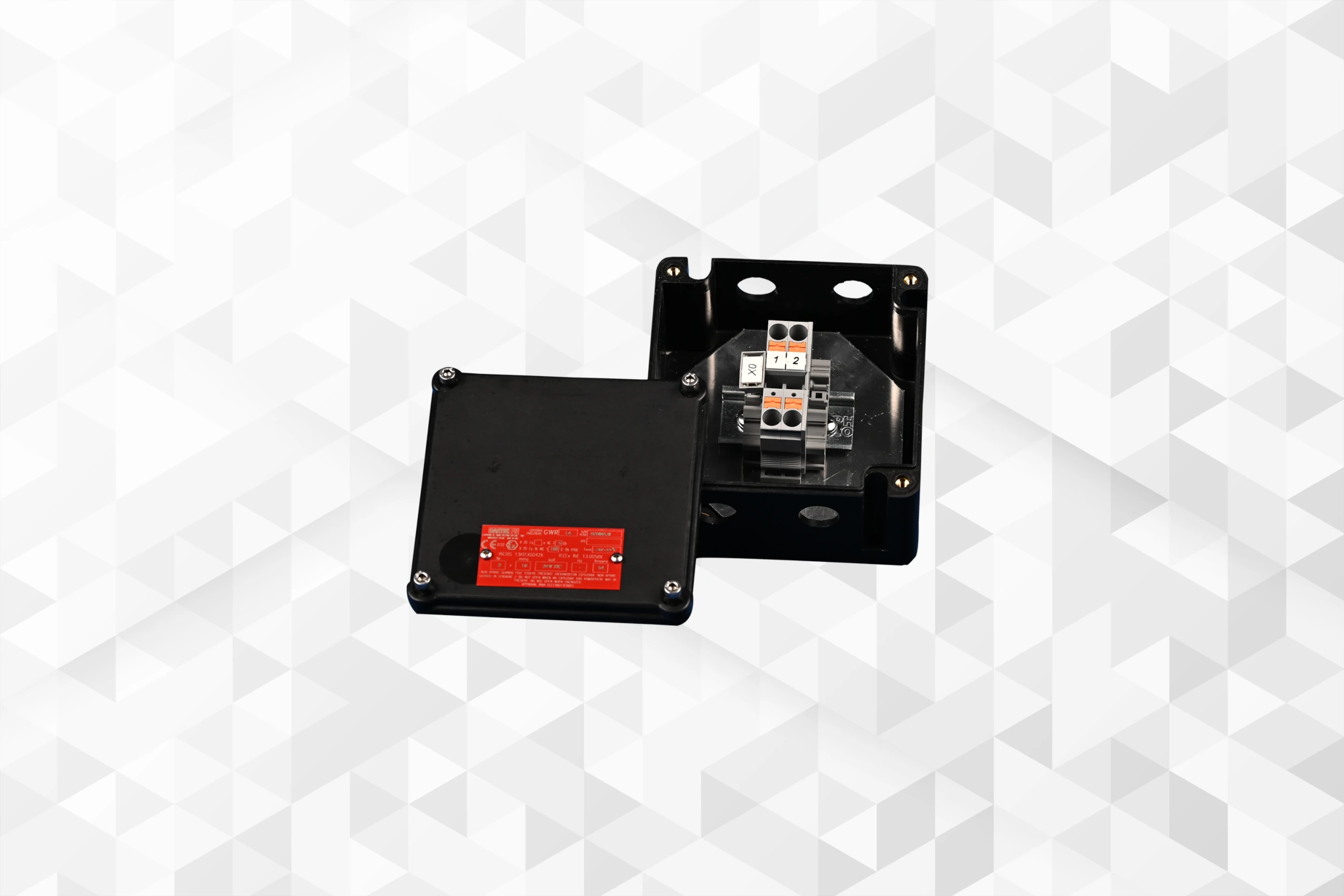

Increased Safe (Ex e)

Increased Safety Ex e is an explosion protection concept applied to the installation to ensure increased security against the possibility of excessive temperatures, arc and sparks from Hazardous area electrical equipment. Equipment that normally causes sparks is excluded from use within this method of explosion protection. The intention of the Ex e Increased Safety standard is to provide an impact resistant enclosure for electrical equipment and also to ensure that the contents will not produce a spark, arc, temperature or current creepage that could ignite the external flammable atmosphere in a hazardous area zone, location or workspace.

Additional information

Applicable Industry / Area

Oil refineries
Onshore
Offshore
Pharmaceuticals
Painting
Chemical & Petrochemical
Water Treatment
Heat tracing
HVAC
Aeronautical
Fuel Dispensing stations
Marine
Paper
Textile
Fragrance

Application Examples

Instrumentation JB
Loop in Loop out JB
Lighting JB
Motor Connection JB
Interconnection JB
Terminal JB

Standards / Norms

IEC / EN 60079-0
IEC / EN 60079-7
IEC / EN 60079-31

Body / Cover

Glass fibre Reinforced Polymer(GRP)
Marine grade Copper Free Aluminum Light Alloy
Stainless Steel 316L

Hazardous area of Installation

Zone 1 / Zone 2 (Gas)
Zone 21 / Zone 22 (Dust)
Temperature Rating: T3….T6
Gas Group: IIC
Protection Degree: IP66, Conforming IEC 60529
Ambient Temperature: -50°C ÷ +60°C

Certificates

ATEX(Europe)
IECEx(Global)
ECASEx(UAE)
NEC 505(North America)
NEC 500(North America)
TR CU(EAC)
INMETRO(BRAZIL)
RINA(MARINE)
PESO(INDIA)
KC(KOREAN)
